Multilens ML Peli Prism

For pasienter med homonym hemianopsi.
Peli prismer gjør det mulig for pasienten å oppdage bevegelse og hindringer i den blinde sonen.
Det benyttes fresnelprisme, som har fordel av å være tynne og ha lav vekt.

To alternativer enten press-on segment eller fastmontert i brilleglass:
Leveres som press-on segment med 40 prismer
Kan leveres fastmontert i brilleglass som ML Optio løsning med 40 prismer eller 57 prismer, dobbelt eller enkelt segment
Se vedlagt guide

Art: 98001 - Test sett ML Peli Prism. Inneholder HangOn, Fitting Guide, 10 stk press-on-segment.
Art: 98003 - Hang on for Ml Peli Prism

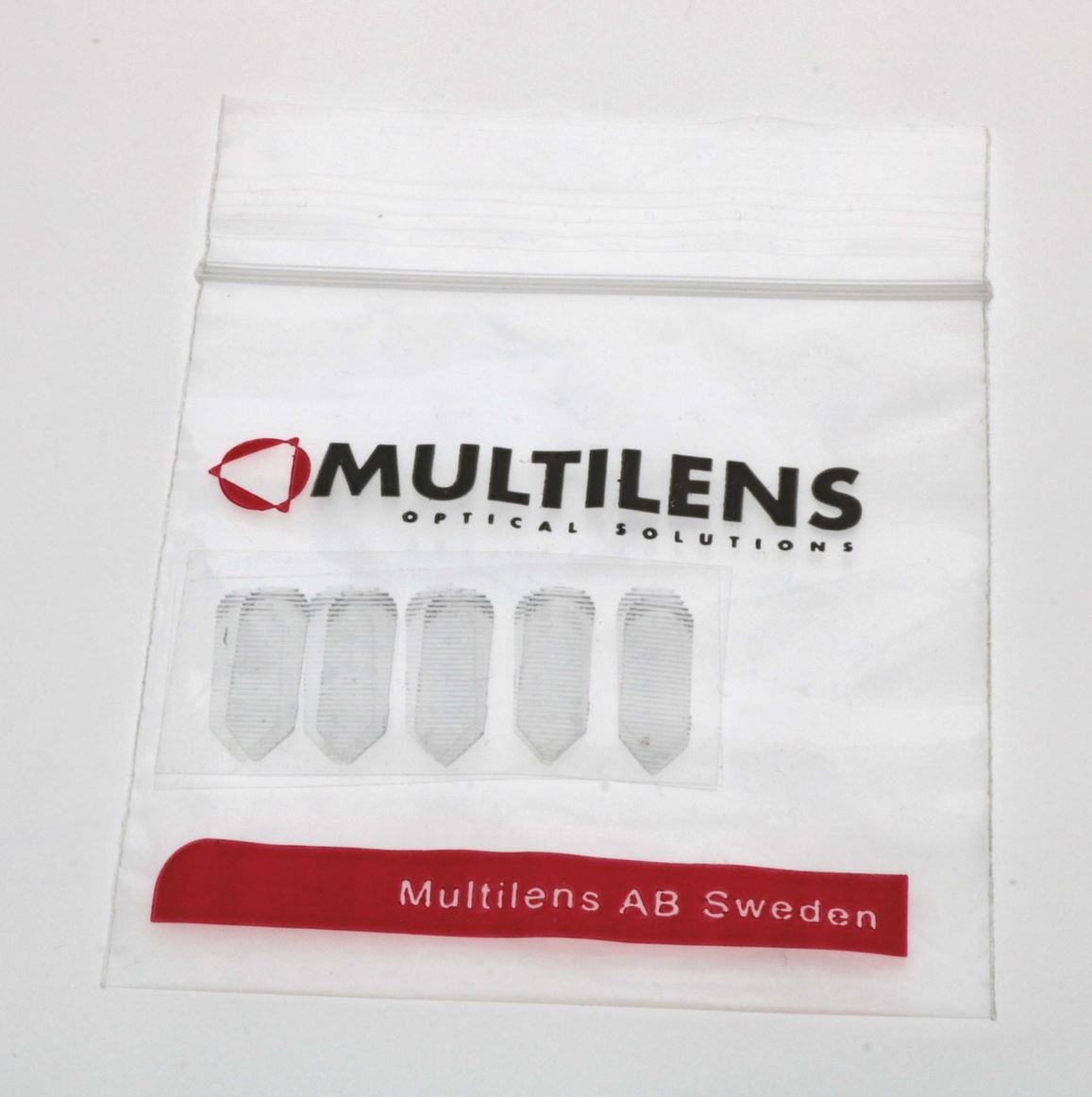

Art: 98004 - Ml Peli Prism Press-on segment 10 segment

ML Peli prism

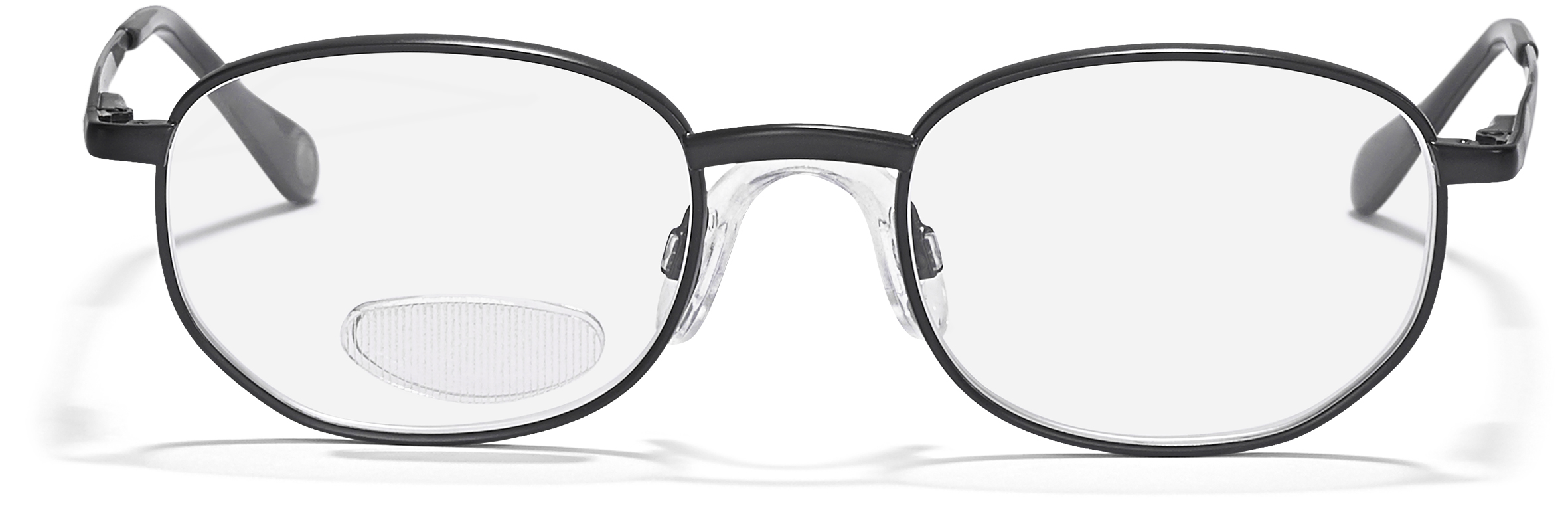

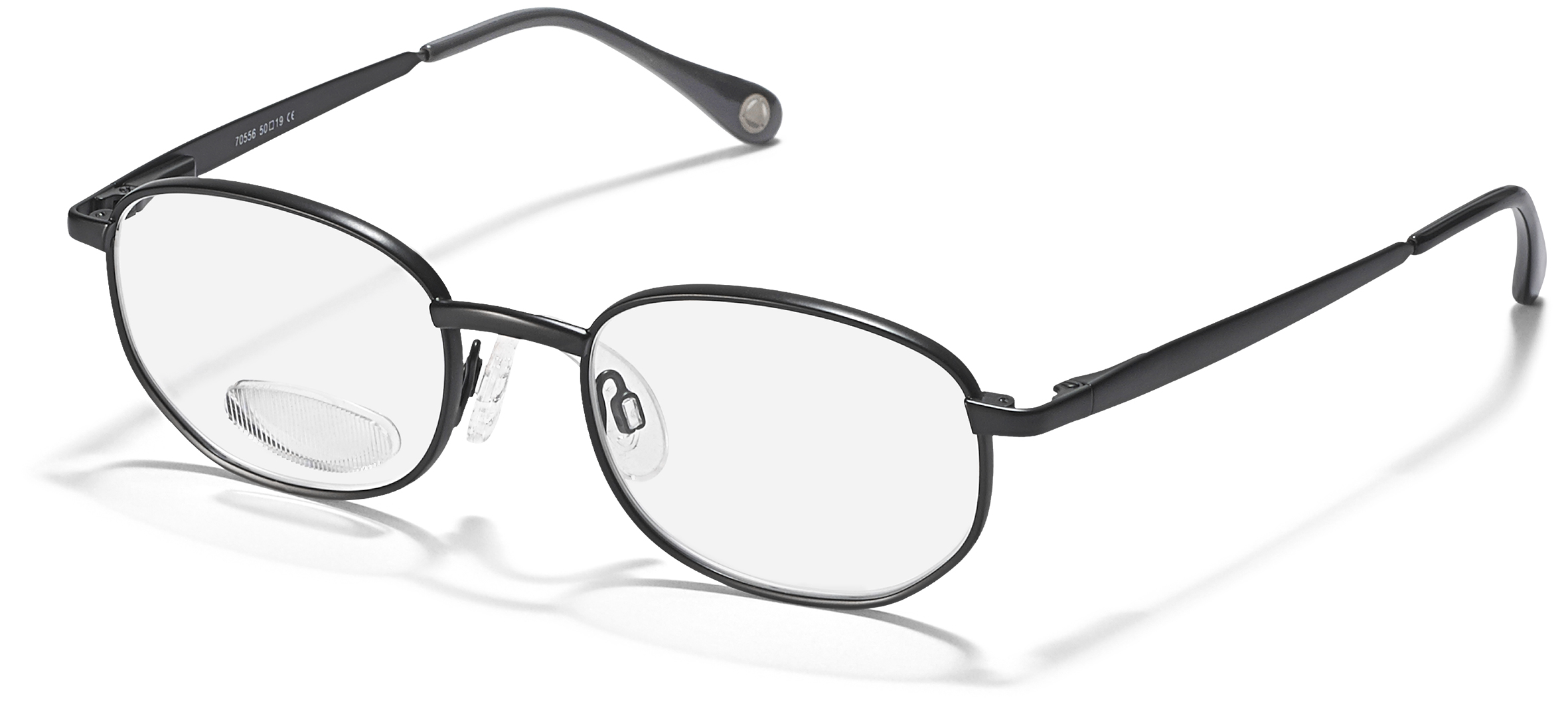

Kan brillemonteres i "Optio" glass:

Innfatningens boks høyde må være minimum 26mm ved bruk av et enkelt segment.

Innfatningens boks høyde må være minimum 38mm ved bruk av doble segmenter.

Produsentens beskrivelse:

Peli Prism

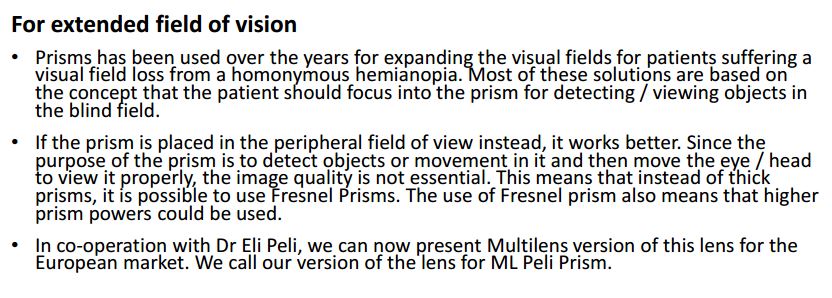

Based on the concept ”multiplexing”. Multiplexing means that the person with hemianopsia don’t focus their vision through the PeliSeg, but uses it for detecting movements and obstacles in the peripheral view. This means that we can make the segment using Fresnel Prism, since the optical quality and exact refractive correction are not crucial.

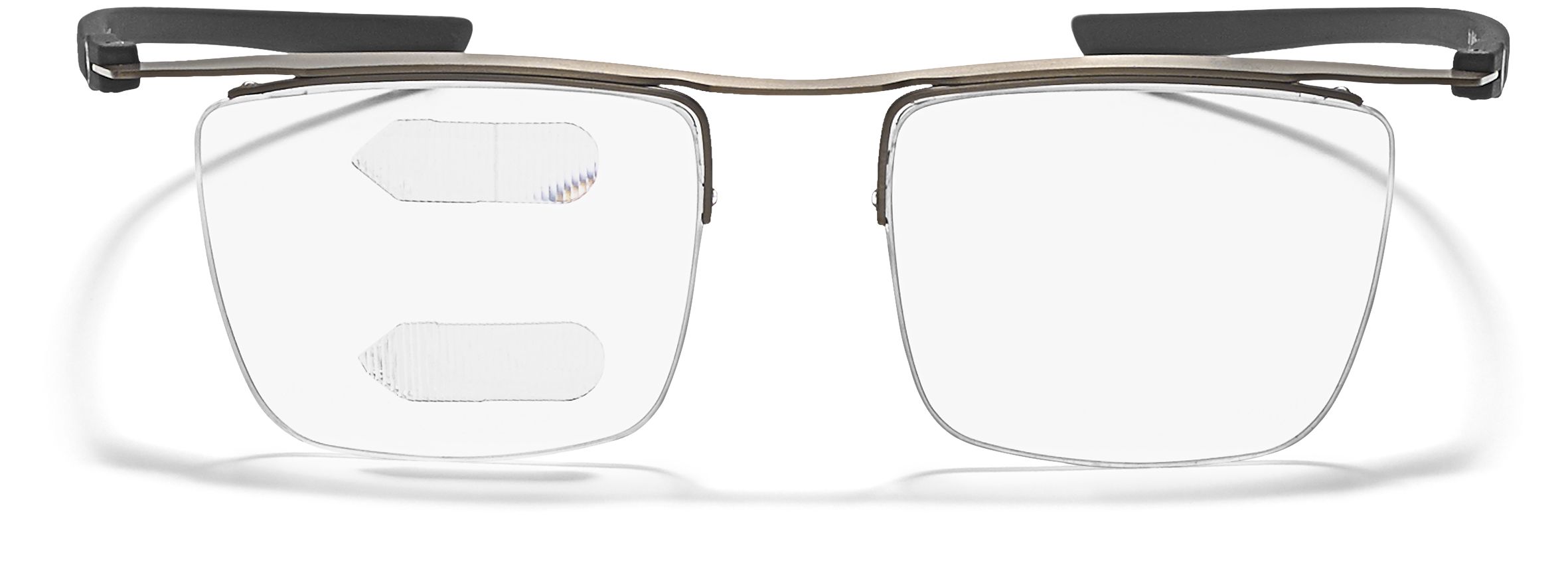

May be ordered with one or two prism segments (double segment). The double segment has one prism at the upper part of the lens and one at the lower, with a distance of 12 mm between the segments.

The unique shape of the segment we call PeliSeg. Our Press-On segments have a pointed end in the direction of the prism base to ease correct placement.

Can be ordered with 40 or 57 PRD, whilst the Press-On segments can be ordered with 40 PRD (in packs of 10). It is individual and should be tried out.

May be mounted in most frames as long as the frame height is at least 26 mm (single) or 38 mm (double) With our frame HangOn you can use the solution when needed. The frame is designed to be put on top of the patients existing glasses, and the segments will be positioned correctly.
